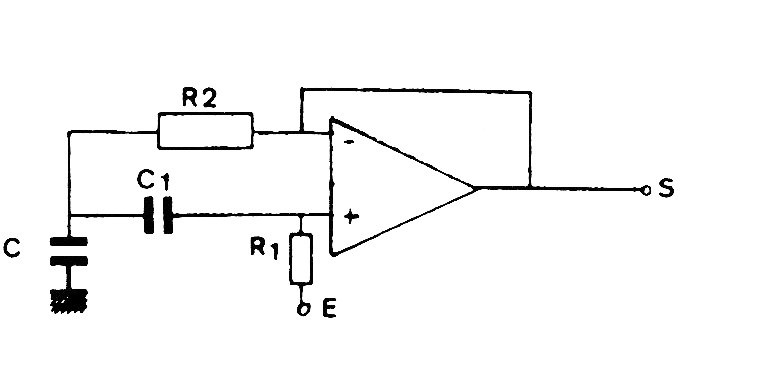

This filter, found in an old manual, has characteristics of reduced overvoltage given by the graph next to the diagram of the previous circuit. The formulas for component calculations are the same as in the previous circuit.
| Clique na imagem para ampliar |
