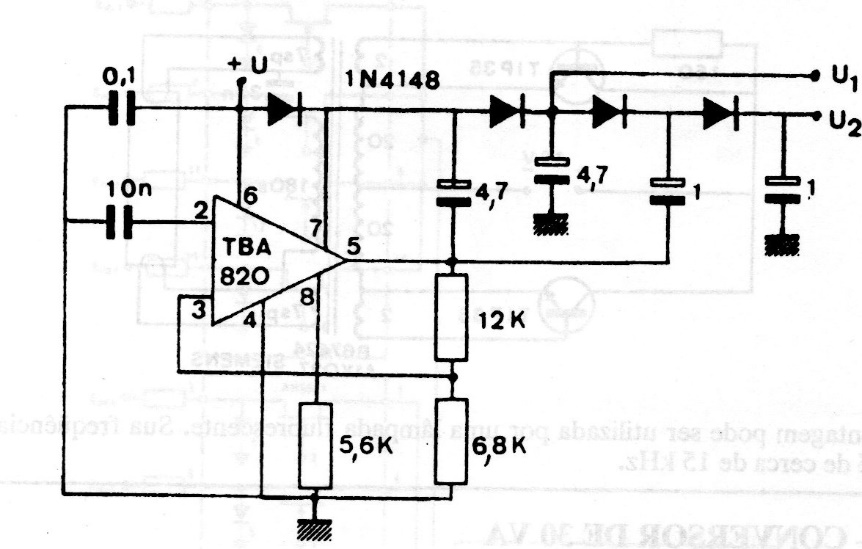

This circuit capable of raising a continuous voltage according to the table given next to the diagram uses an operating circuit that is an audio amplifier with a power of the order of 1 W maximum. The circuit does not use a symmetrical source and the output current is low.
| Clique na imagem para ampliar |
