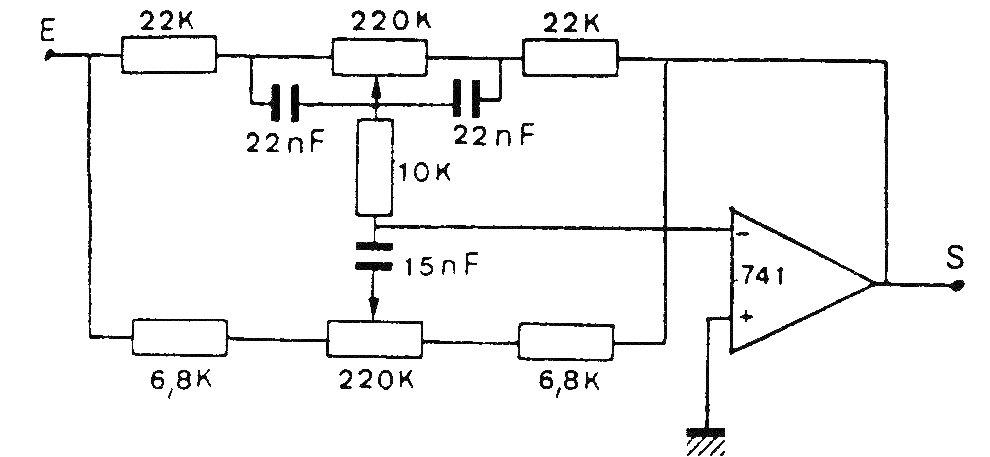

We found this circuit, which appears with variations on this site, in a European documentation from the 90's. The circuit must be powered by a symmetrical source and other operational ones can be used.
| Clique na imagem para ampliar |
Active Tone Control 741 (CB19184E)
- Details
- Written by: Newton C. Braga
