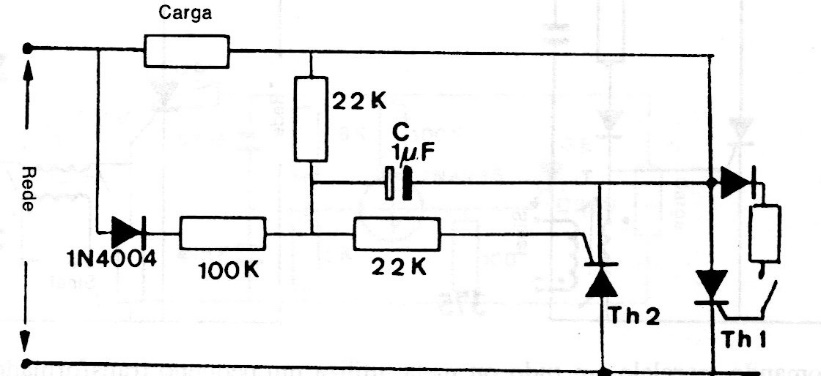

In this circuit we have the way to use a simple switch to control SCRs in a full wave system. The circuit is from a 90s manual and SCRs must be specified to control the chosen load. SCRs must be provided with heatsinks, depending on the controlled load. The worthless resistor has 330 ohms to 1 k depending on the SCR sensitivity.
