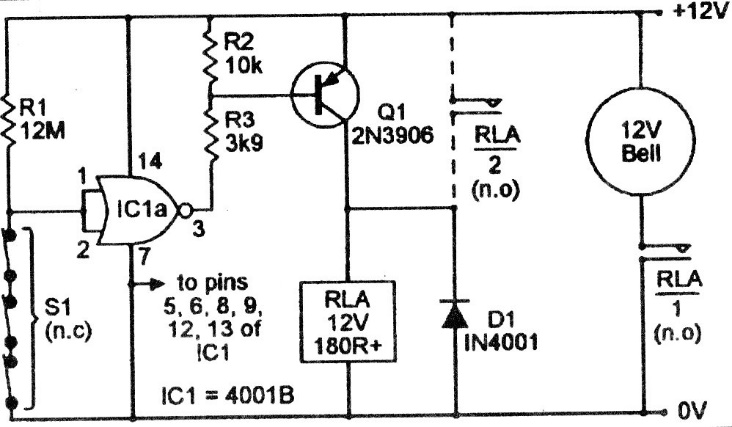

We found this circuit in an American documentation from the 90s. The consumption is only 1 uA in the standby condition. The relays must be of the sensitive type from 6 to 12 V, depending on the supply voltage.
| Clique na imagem para ampliar |
Low Consumption CMOS Alarm (CB19227E)
- Details
- Written by: Newton C. Braga
