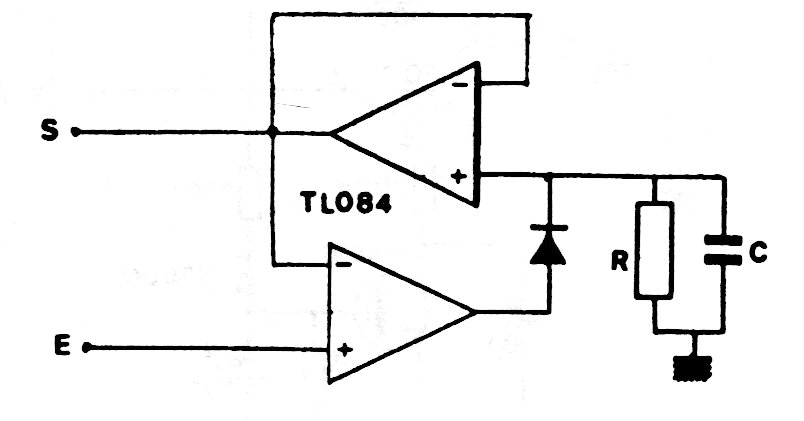

This circuit detects when a signal reaches its peak value. The source must be symmetrical and equivalent operational amplifiers can be used. This circuit was found in an old European publication.
| Clique na imagem para ampliar |
Peak Value Detector II (CB19402E)
- Details
- Written by: Newton C. Braga
