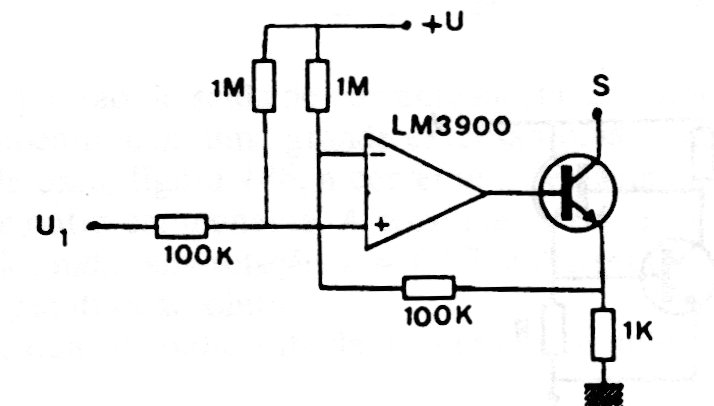

This circuit has the transistor chosen according to the maximum current desired at the output. Unlike the previous one, this circuit is “low side”, that is, it is on the negative side of the load.
| Clique na imagem para ampliar |
Voltage Controlled Current Regulator II (CB19944E)
