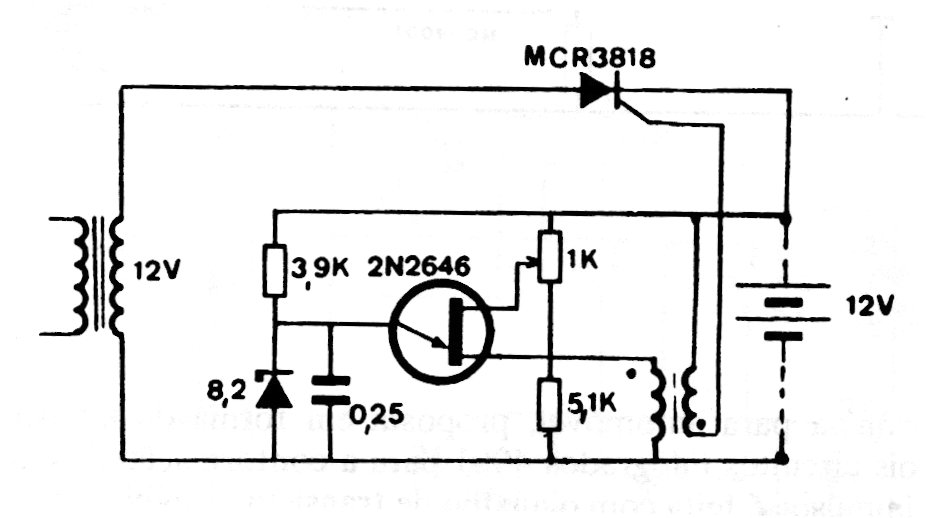

This charger was found in an old Motorola manual using an SCR from this company, which, however, can be replaced by equivalents such as those in the ICT series. The 12 V secondary transformer with 5 A. The trimpot adjusts the operating point of the circuit for a fully charged battery.
