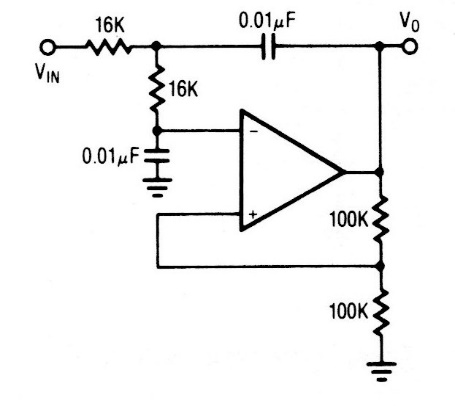

1 kHz Active Low Pass Filter RC4558 (CB19780E)
- Details
- Written by: Newton C. Braga
The operational amplifier used on this Raytheon circuit is similar to the 741. The circuit is from 90s documentation and the power supply must be symmetrical.
