Voltage Indicator (CB19864E)

Details
Written by: Newton C. Braga

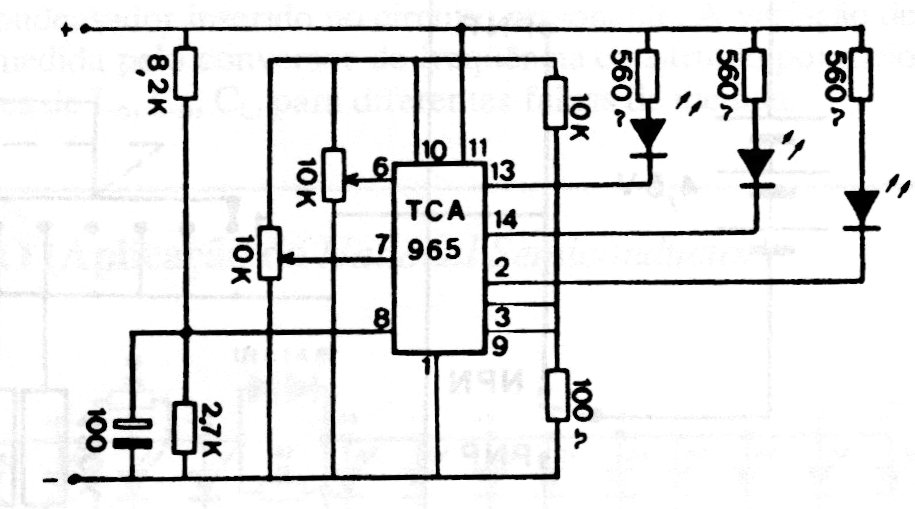

The voltages in an adjusted range in the trimpots are indicated by 3 LEDs. The LEDs indicate when the voltage is below the range, above the range and in the range.
