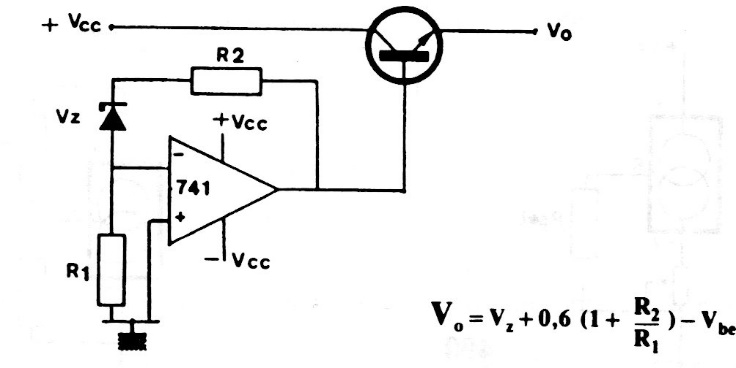

The current of this voltage regulator depends on the transistor which can be a TIP31 for 2 or 3 A. The output voltage is given by the zener diode and the resistors depend on this voltage. The source for the operational must be symmetrical.
