High Q Crystal Filter (CB19698E)

Details
Written by: Newton C. Braga

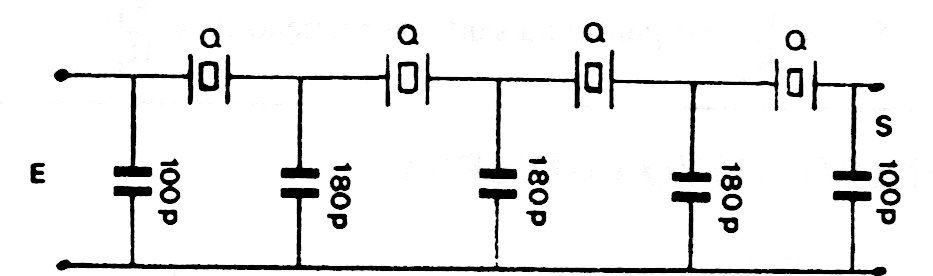

For the 1 MHz frequency, the pass band of this filter is only 120 Hz wide. The filter is suitable for telecom applications and its impedance is 600 ohms.
