Fader (CB19811E)

Details
Written by: Newton C. Braga

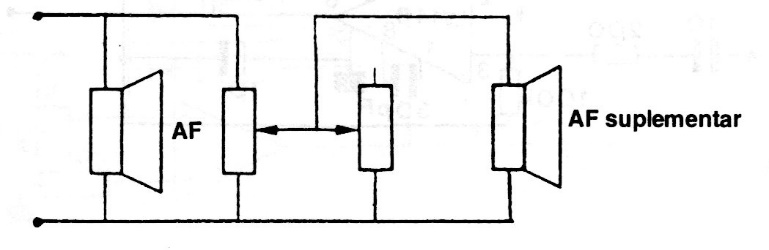

This circuit controls the passage of the signal from one speaker to another. The potentiometers must be of wire 50 to 100 ohms with dissipation according to the power of the sound system.




| Clique na imagem para ampliar |
