Inverter Amplifier LM3900 (CB19842E)

Details
Written by: Newton C. Braga

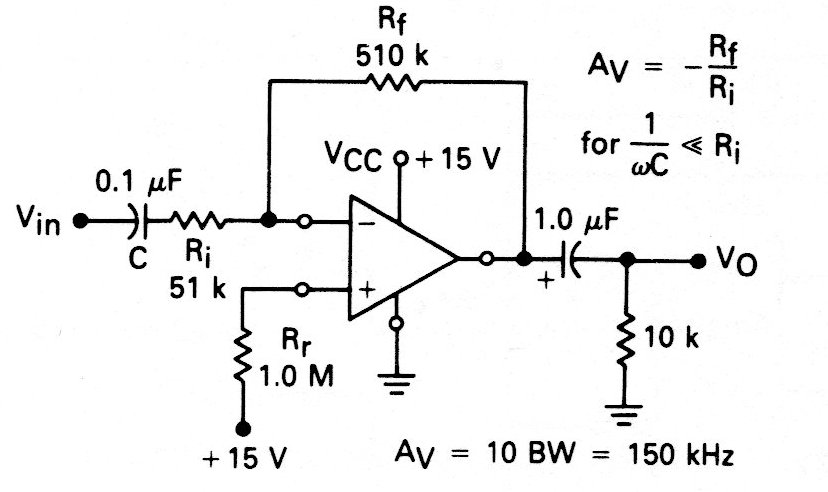

This circuit, from a component manual, also applies to other components in the same family. The font does not have to be symmetrical, and the characteristics are given next to the diagram.
