Voltage Indicator (CB19863E)

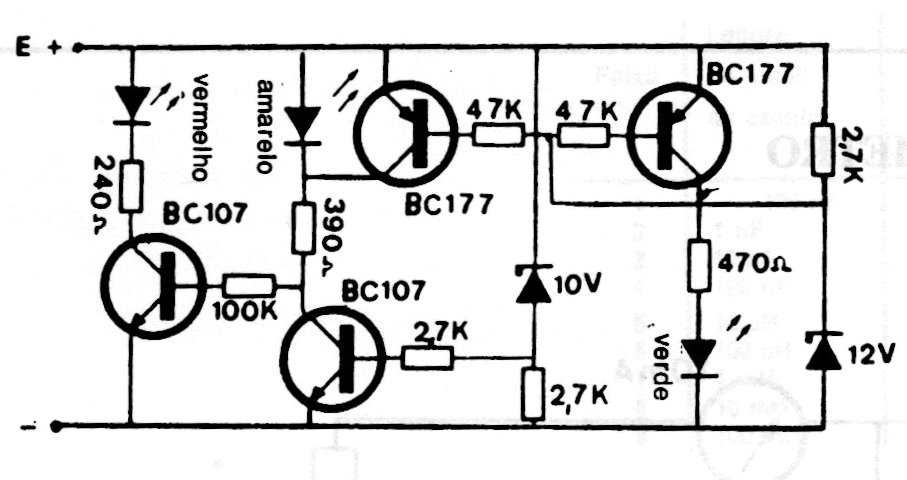

The circuit shown indicates voltages from 10 to 14 V used to monitor automotive voltage. One or two LEDs light up depending on the voltage.

| Clique na imagem para ampliar |
