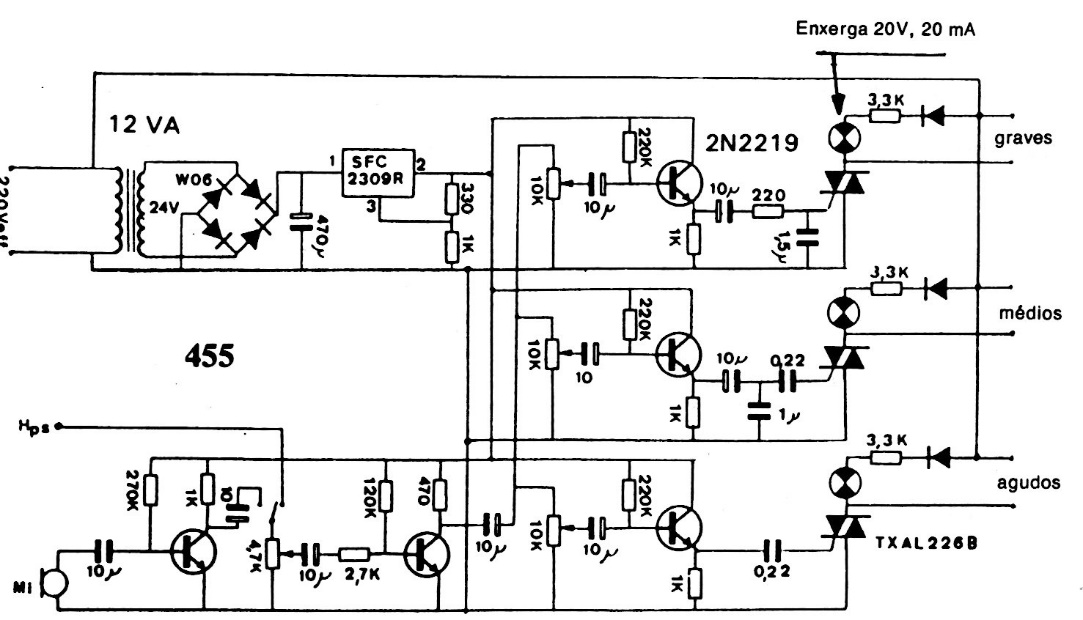

With the use of a microphone and an amplifier stage, this circuit does not require connection to the sound system, operating with the ambient sound. The circuit was found in a circuit manual from the 90s and the triacs can be from the TIC series. The transistors can be BC548 and the circuit only works with incandescent lamps.
