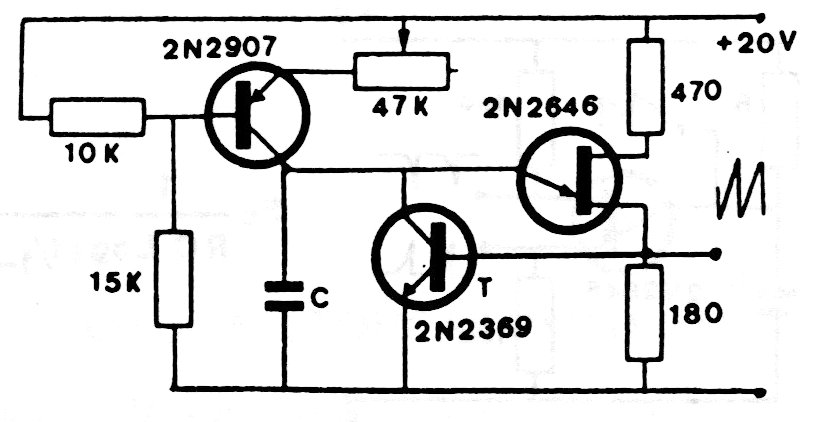

With this circuit it is possible to accelerate the discharge of a capacitor in a unijunction oscillator, thus narrowing the output pulses. The circuit is from a circuit manual and C determines the operating frequency.
