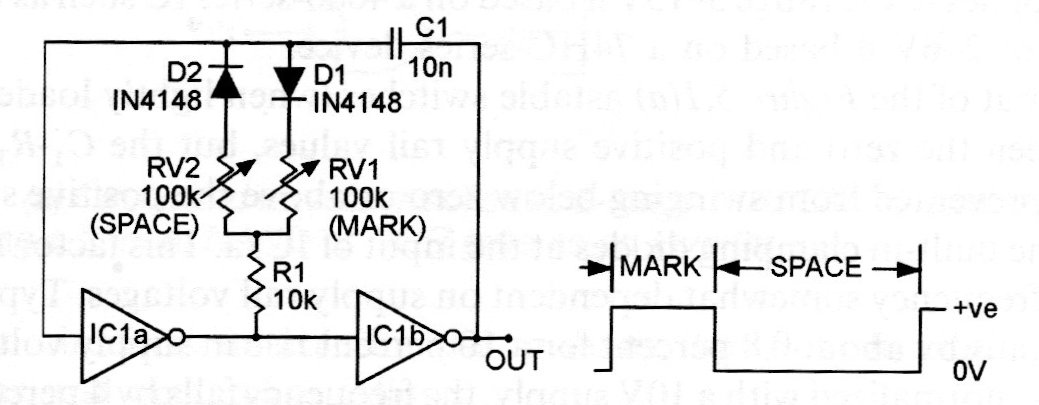

This circuit has adjustments for both the time the signal is at high and low levels. Inverter or NAND and AND gates connected as such can be used and the power can be between 3 and 12 V. The average frequency is 1 kHz. The circuit is from European documentation from the 90s.
