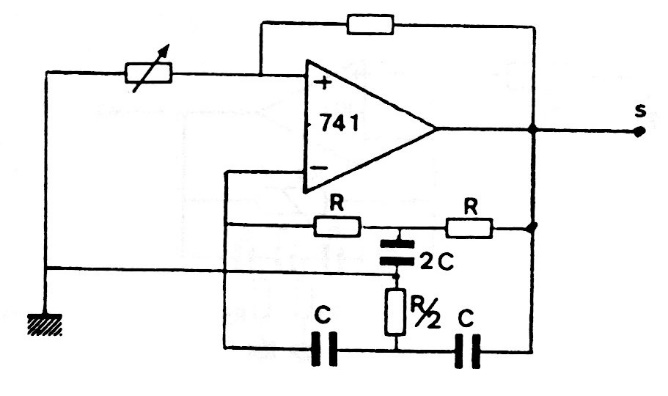

This circuit appears with variations in other points of this section. This version is from European documentation from the 1980s and the circuit must be powered by a symmetrical source. The frequency depends on C and is set in the pot (100 k). The unmarked resistor can be from 100 k to 1 M.
