Side Tone for SSB (CB19978E)

Details
Written by: Newton C. Braga

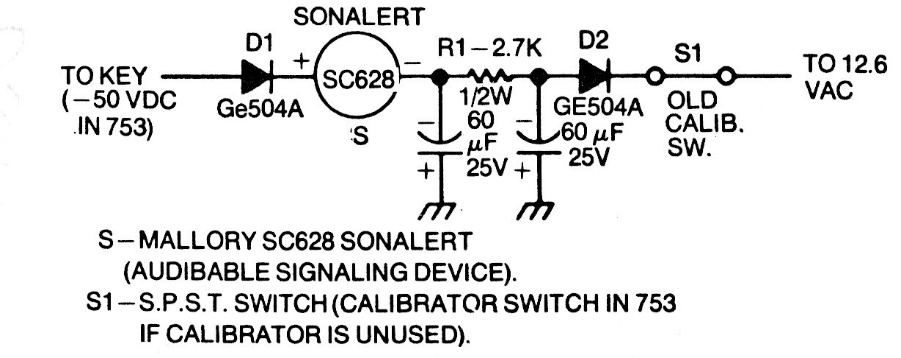

This circuit was found in a documentation for radio amateurs from the year 70. Its purpose is to produce a tone on a transducer when transmitting messages in SSB telegraphy.




| Clique na imagem para ampliar |
