5 to 12V Voltage Regulator (CB19001E)

Details
Written by: Newton C. Braga



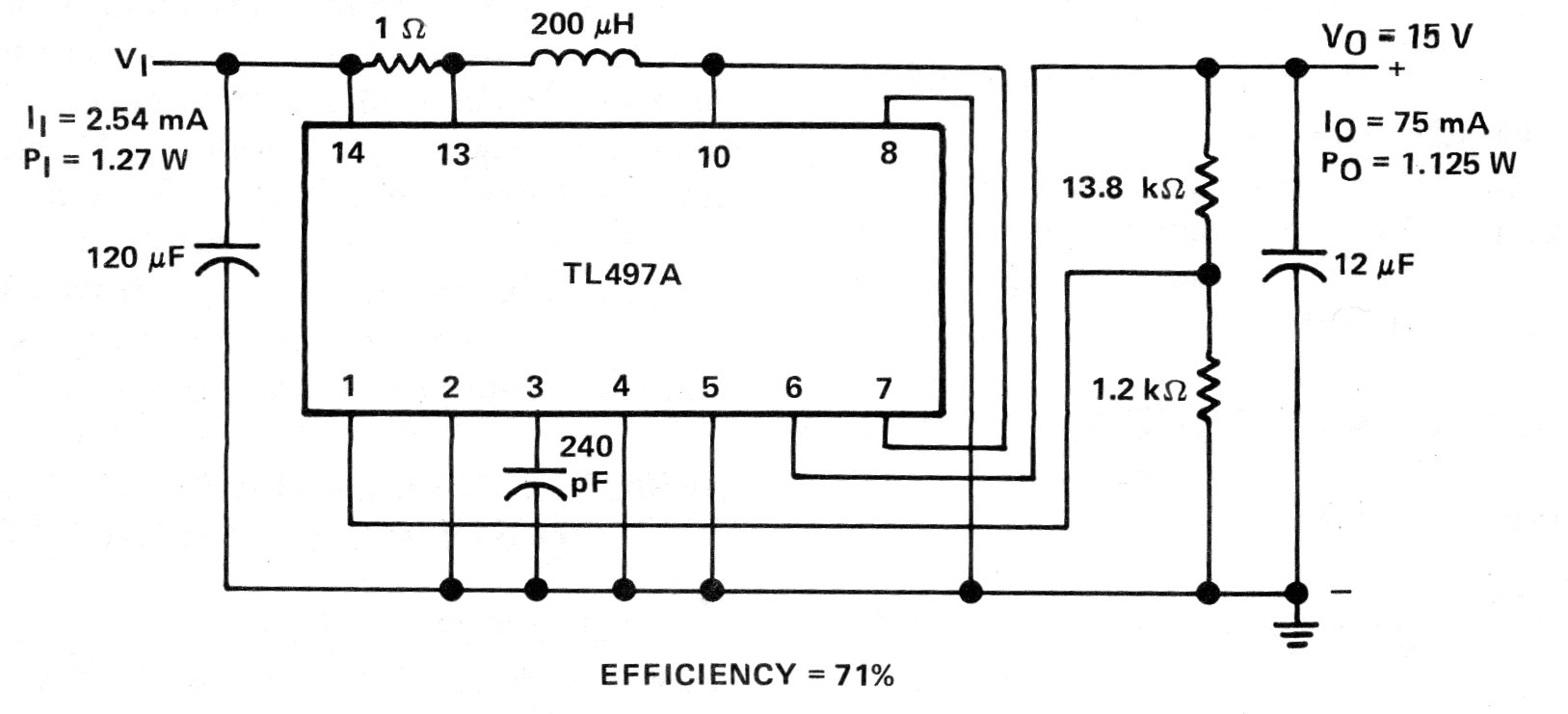

This switched or switched regulator was suggested by Texas Instruments in one of its application manuals. The circuit converts 5 V input to 12 V output with a current up to 75 mA.




| Clique na imagem para ampliar |
