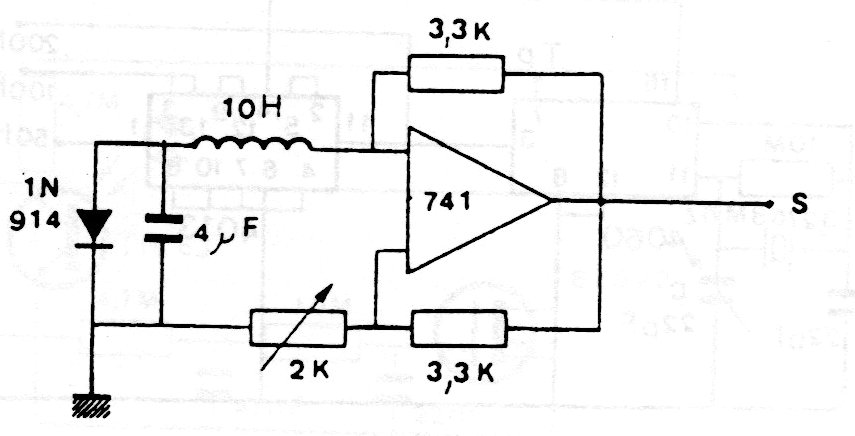

This oscillator configuration with the operational 741 was obtained in a European documentation from the 80's. The circuit must have symmetrical supply and the potentiometer allows the frequency adjustment. The maximum frequency is around 1 MHz and the circuit provides a signal with low distortion.
