Tachymeter (CB19862E)

Details
Written by: Newton C. Braga

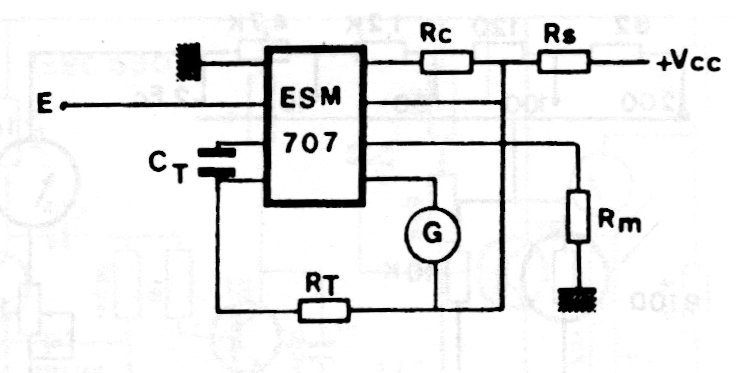

This circuit is from old documentation, using a component that cannot be found easily today. The indicator is a galvanometer, and the input voltage is in the order of 1 V.




| Clique na imagem para ampliar |
