Voltage Calibrator (CB19745E)

Details
Written by: Newton C. Braga

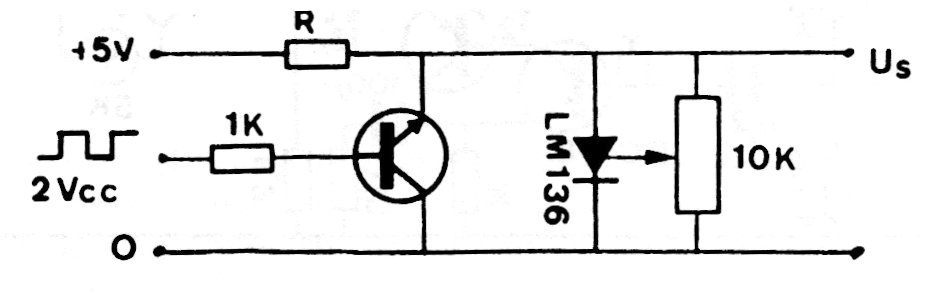

This circuit provides a reference voltage of 2.5 V adjusted in the trimpot. The transistor can be the BC558 (in the drawing it came out as NPN). The control is done by a rectangular input signal.




| Clique na imagem para ampliar |
