AND and OR function with Diodes (CB19888E)

Details
Written by: Newton C. Braga

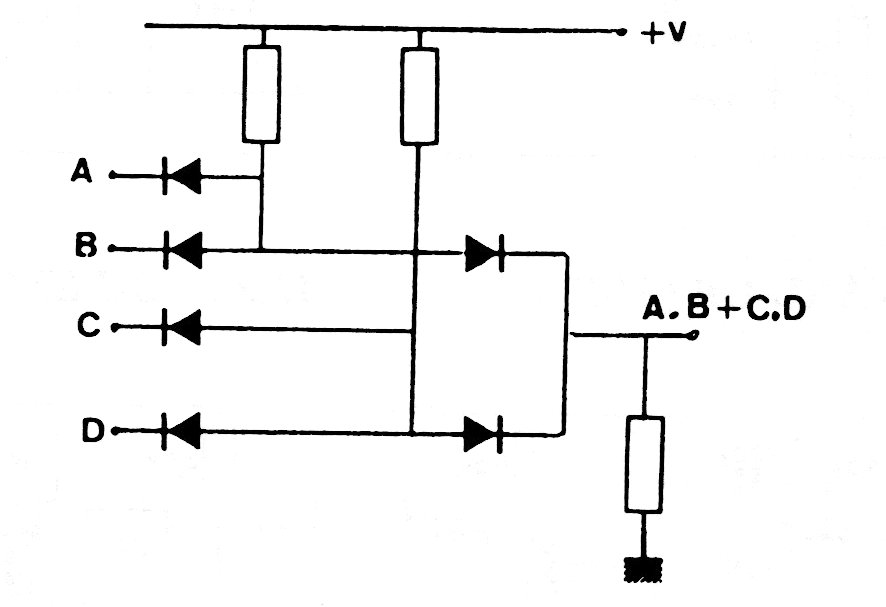

This circuit implements two logic functions at the same time. The diodes are for general use and the resistors have typical values of 2k2 for logic of 5 V.




| Clique na imagem para ampliar |
