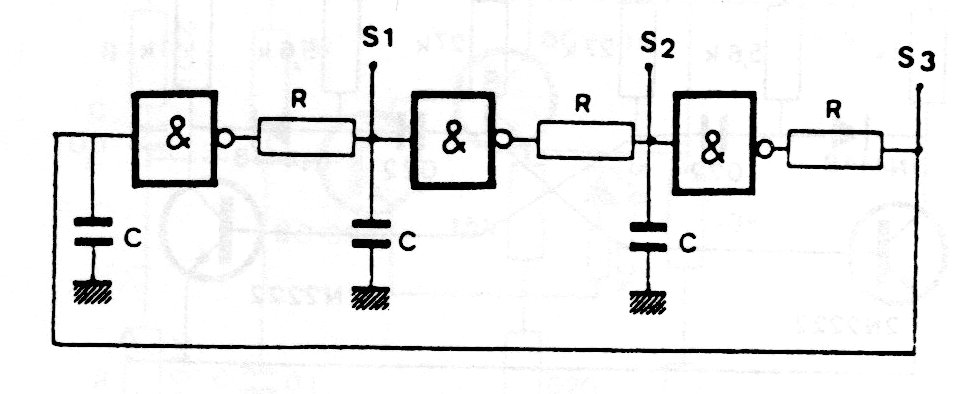

CMOS gates such as 4001 or 4011 can be configured as inverters and used in the circuit shown where R and C determine the frequency of operation the signals are taken from several outputs. The maximum frequency is around a few megahertz and the power can be supplied with voltages from 3 to 15 V.
