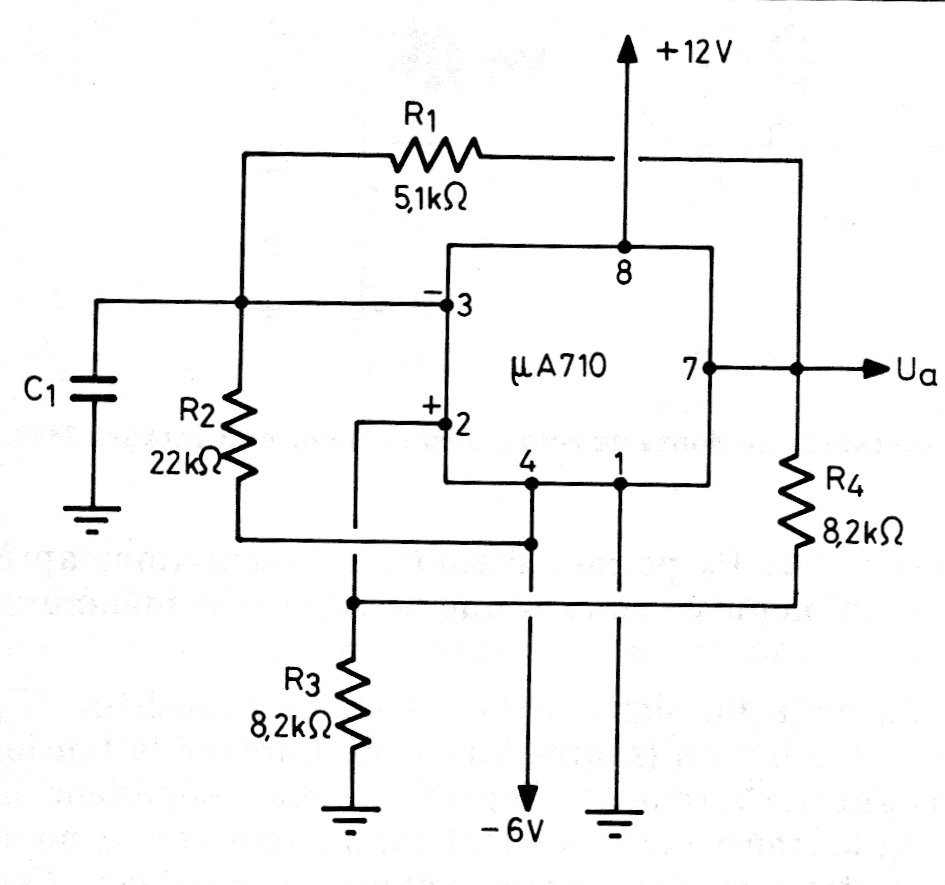

The integrated circuit used in this multivibrator is no longer common today. With the components indicated the frequency is a few kilohertz. The capacitor can have values between 100 and 220 nF in these conditions.
| Clique na imagem para ampliar |
Integrated Astible uA710 (CB19421E)
