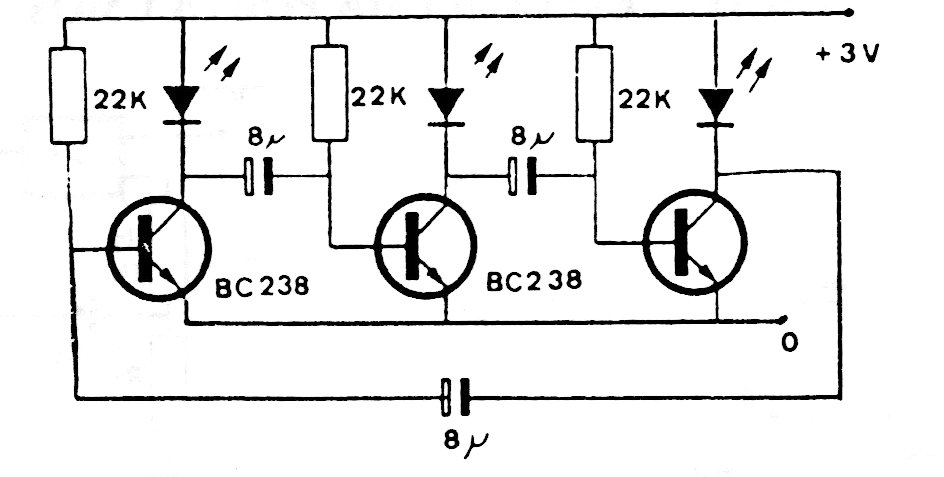

This circuit generates a multiple Inal with 3 outputs and whose frequency depends on the values of the capacitors used. With the indicated values we have the production of a very low frequency signal. The circuit causes the LEDs to flash in an almost sequential manner.
| Clique na imagem para ampliar |
