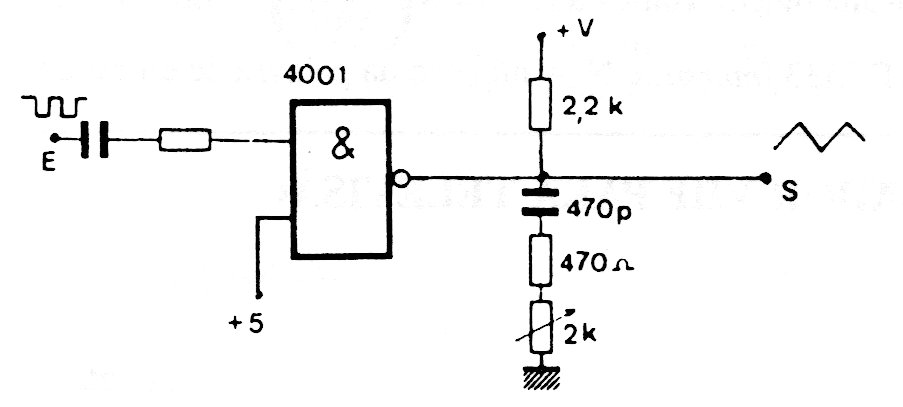

This circuit operates with signals from 150 kHz to 1 MHz and makes use of a known NAND CMOS gate. The power depends on the application and the linearity of the output signal is adjusted in a trimpot. The RC network without values depends on the signal frequency.
