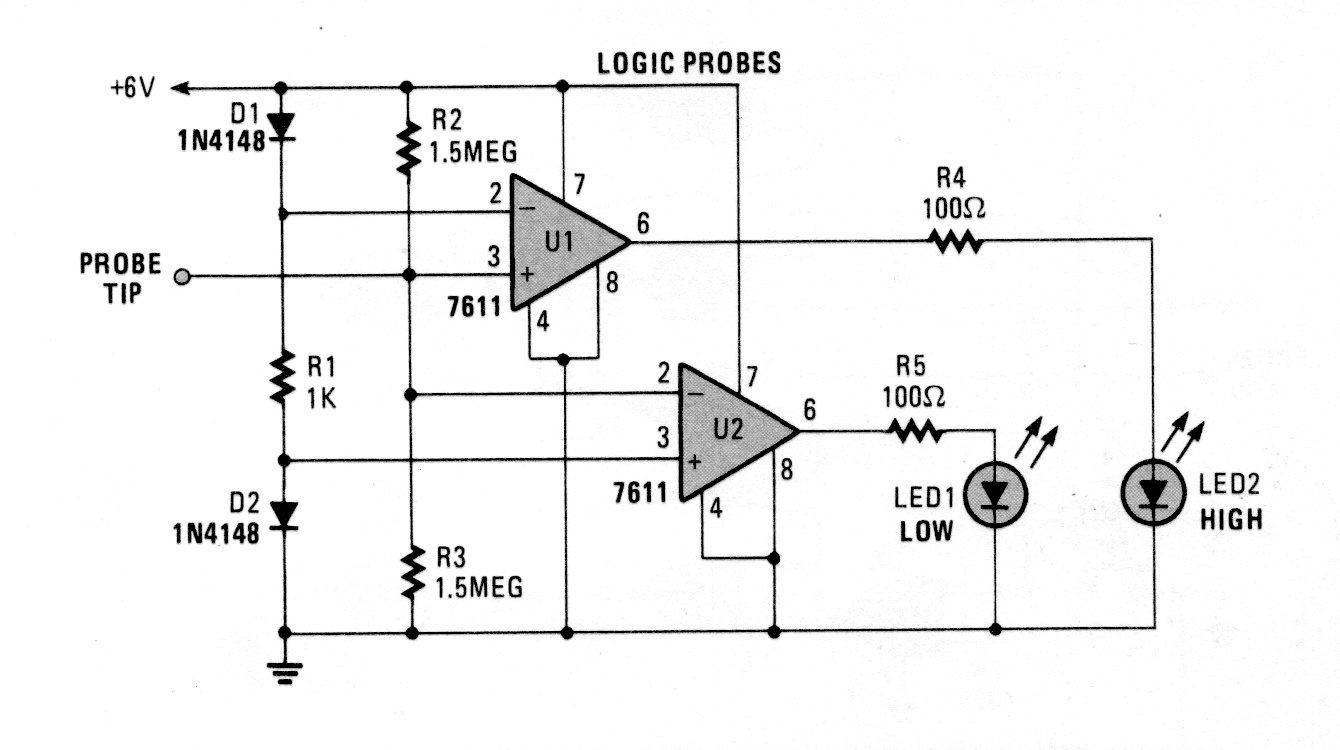

The integrated circuit used in this application is not very common. The circuit is intended for testing both TTL and CMOS circuits depending only on the supply voltage. We found this circuit in not very old American documentation.
