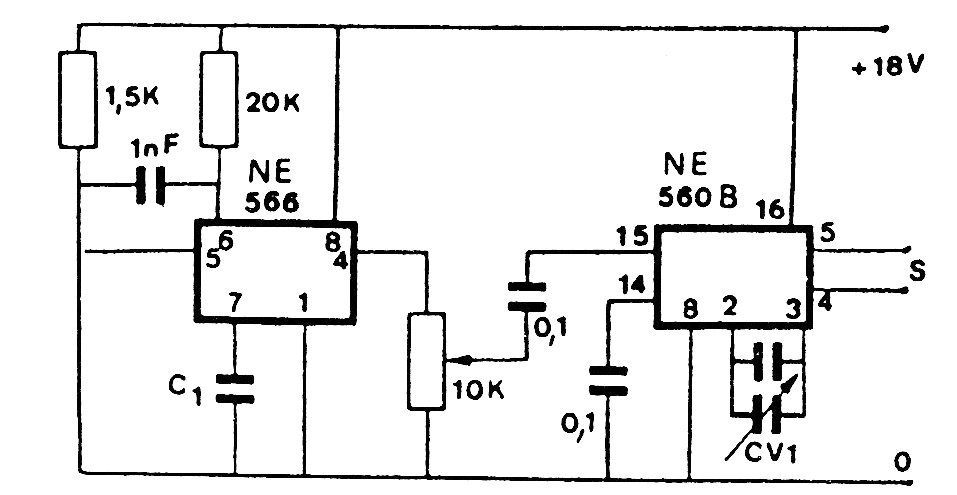

This circuit can generate signals of frequencies up to 1 or 2 MHz, tuned in the capacitor. The circuit is modulated, and the integrated ones used are not very common today. We found this application in an 80s circuit manual.
| Clique na imagem para ampliar |
