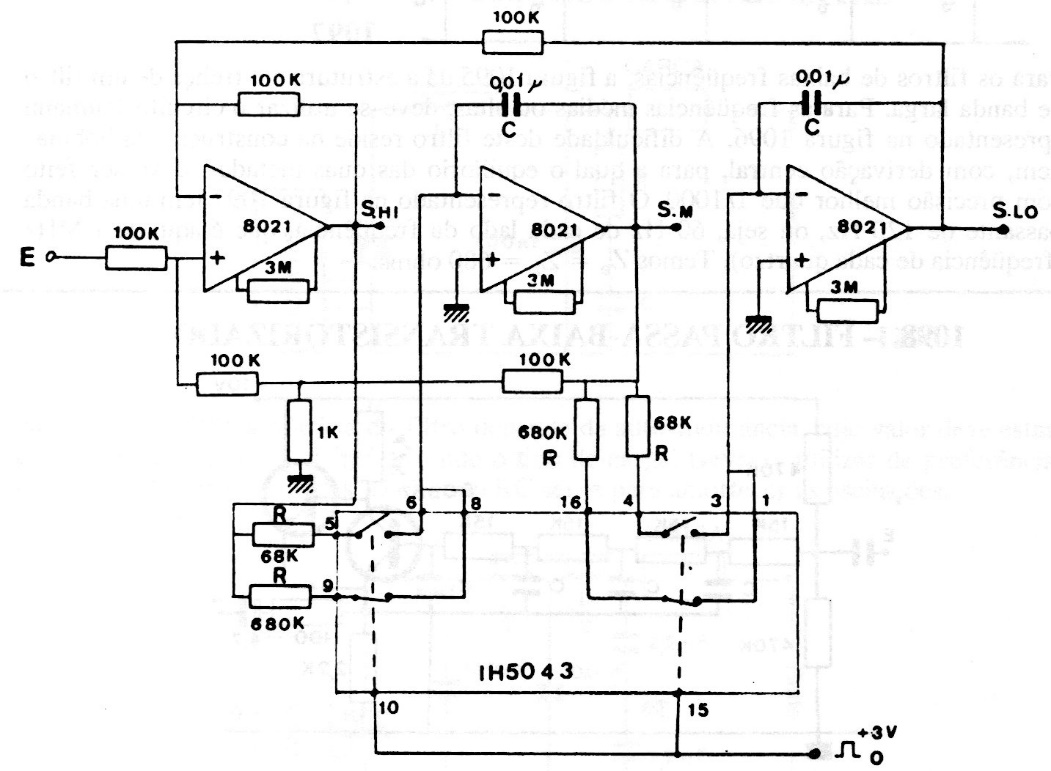

This multi-function filter can be used as a shield controlled by TTL signals. At the high level it works as low-pass, high-pass, band pass or rejector for 23.5 Hz and in the low level as high as 235 Hz.
| Clique na imagem para ampliar |
Active Filter with Logic Control (CB19695E)
- Details
- Written by: Newton C. Braga
