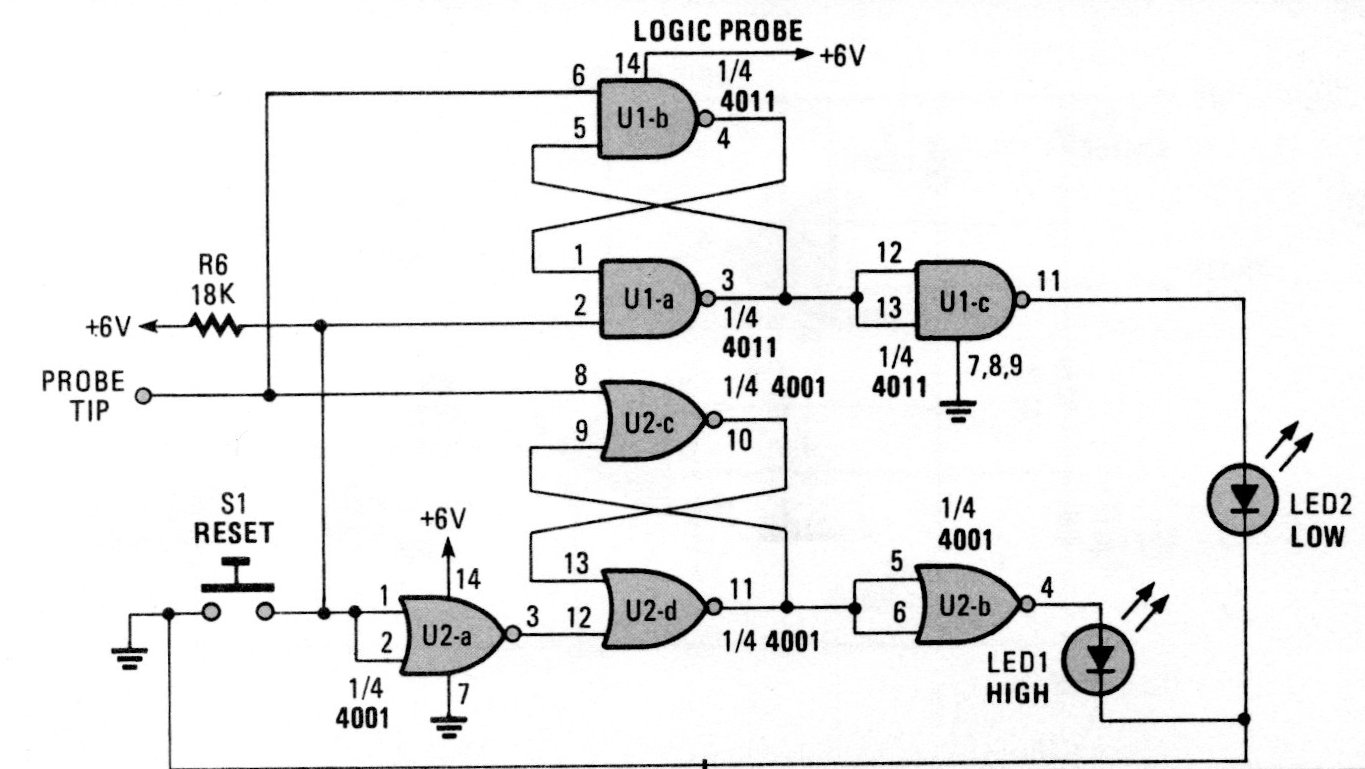

This configuration with common CMOS gates was found in an American publication from the 90s. The circuit is still current and can be used with TTL logic (5 V supply) as well as with CMOS logic (power according to the circuit).
| Clique na imagem para ampliar |
