FM Spy Transmitter (CB19431E)

Details
Written by: Newton C. Braga

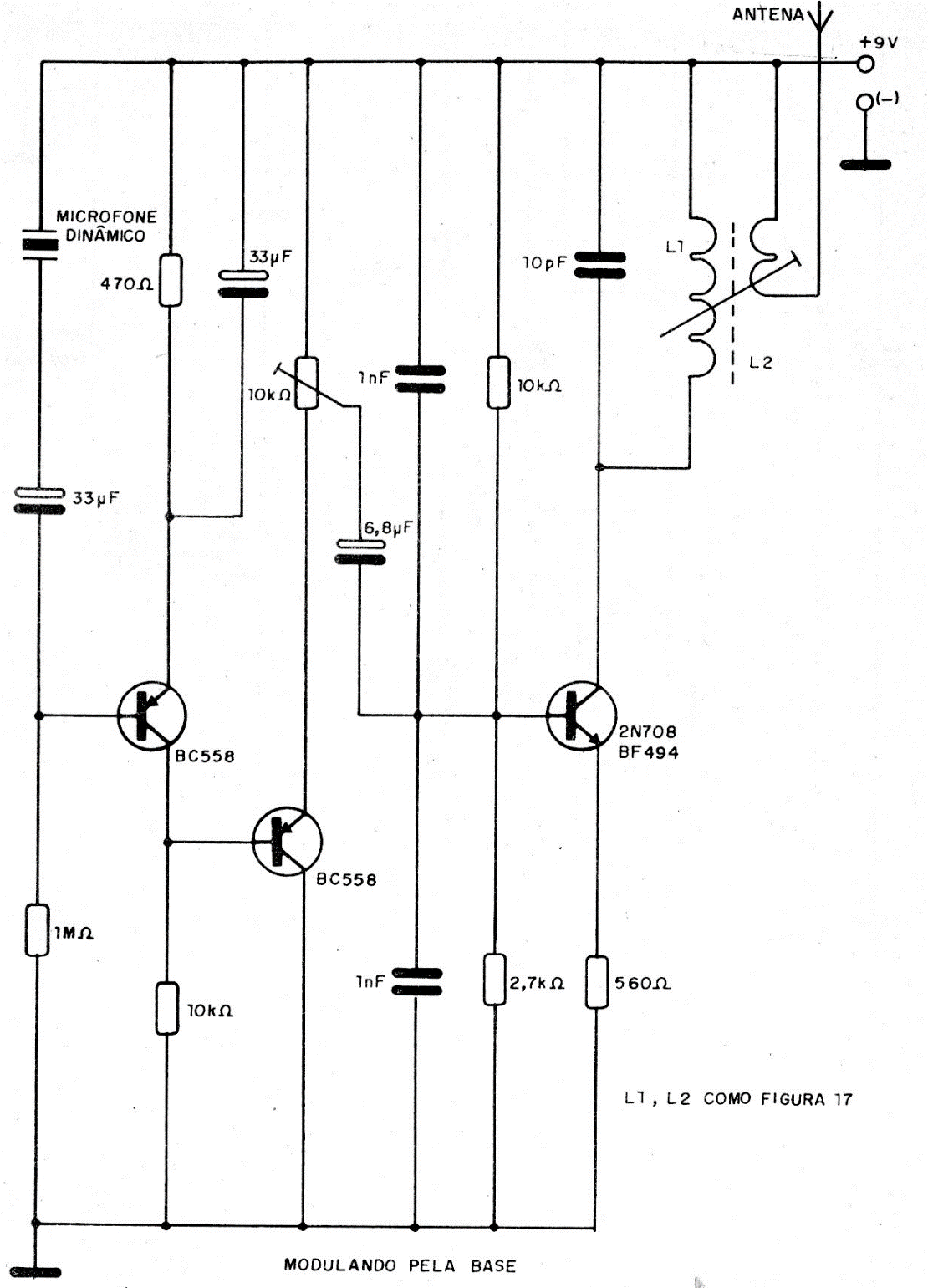

We found this circuit in a spy book from the 90s. Transistors admit equivalents and the coil can be designed as in the CB19425E project. Power is provided by cells or 9 V battery.




| Clique na imagem para ampliar |
