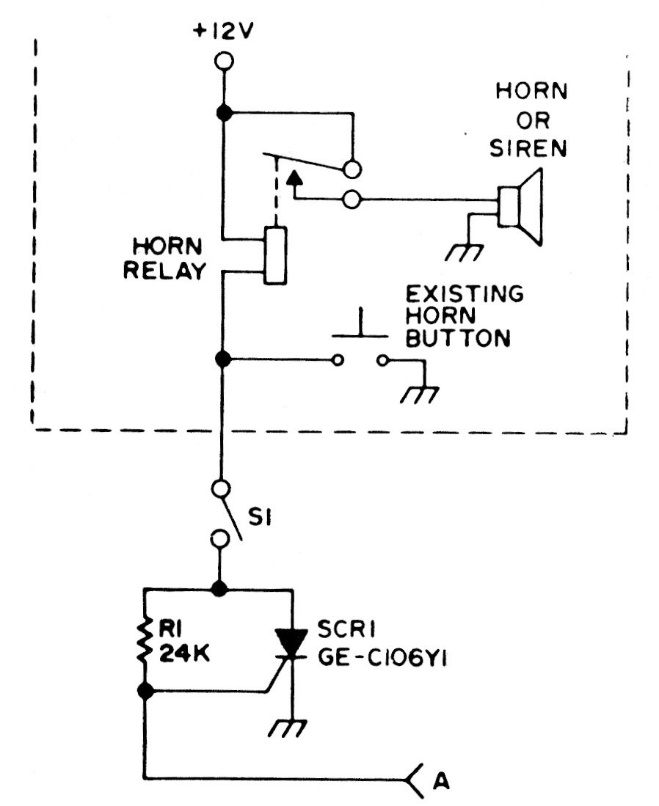

This circuit was found in a 1975 documentation. The SCR can be of any type and in this case, we have the horn activation. The relay must be a 12 V type with high contact current.
| Clique na imagem para ampliar |
SCR Mobile Alarm (CB19975E)
- Details
- Written by: Newton C. Braga
