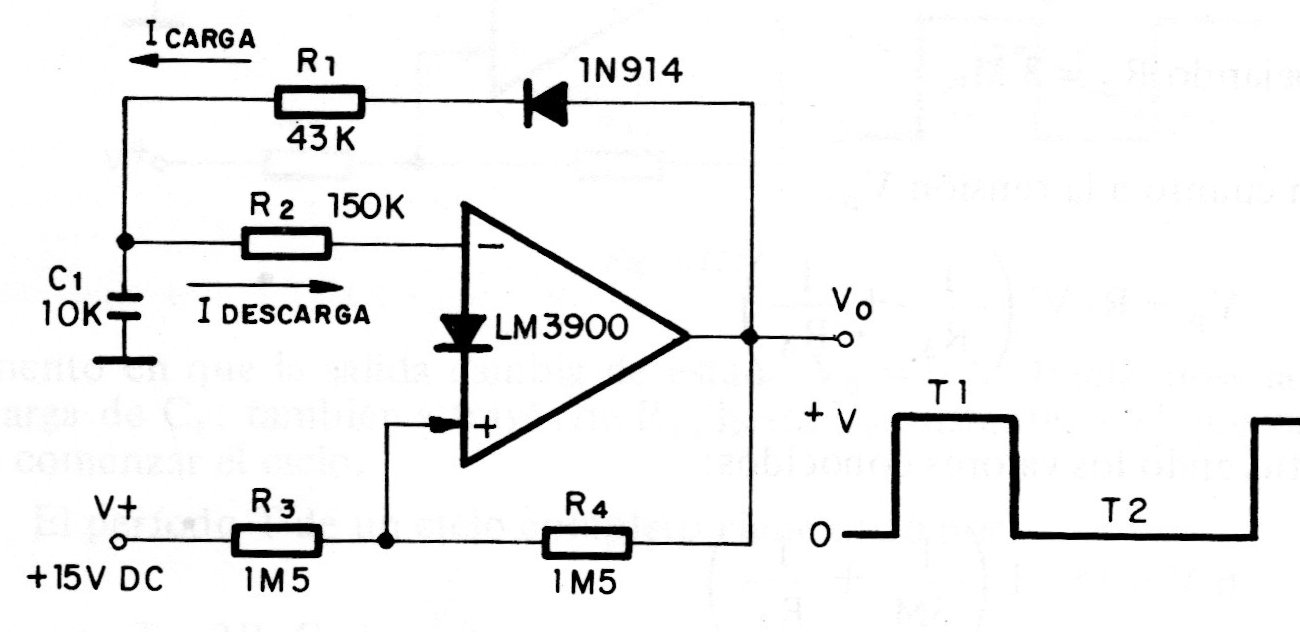

This circuit uses an LM3900 transconductance operational amplifier to generate pulses whose duration depends on R1 and separation from R2. The frequency depends on C1. All these components can be changed according to the application.
