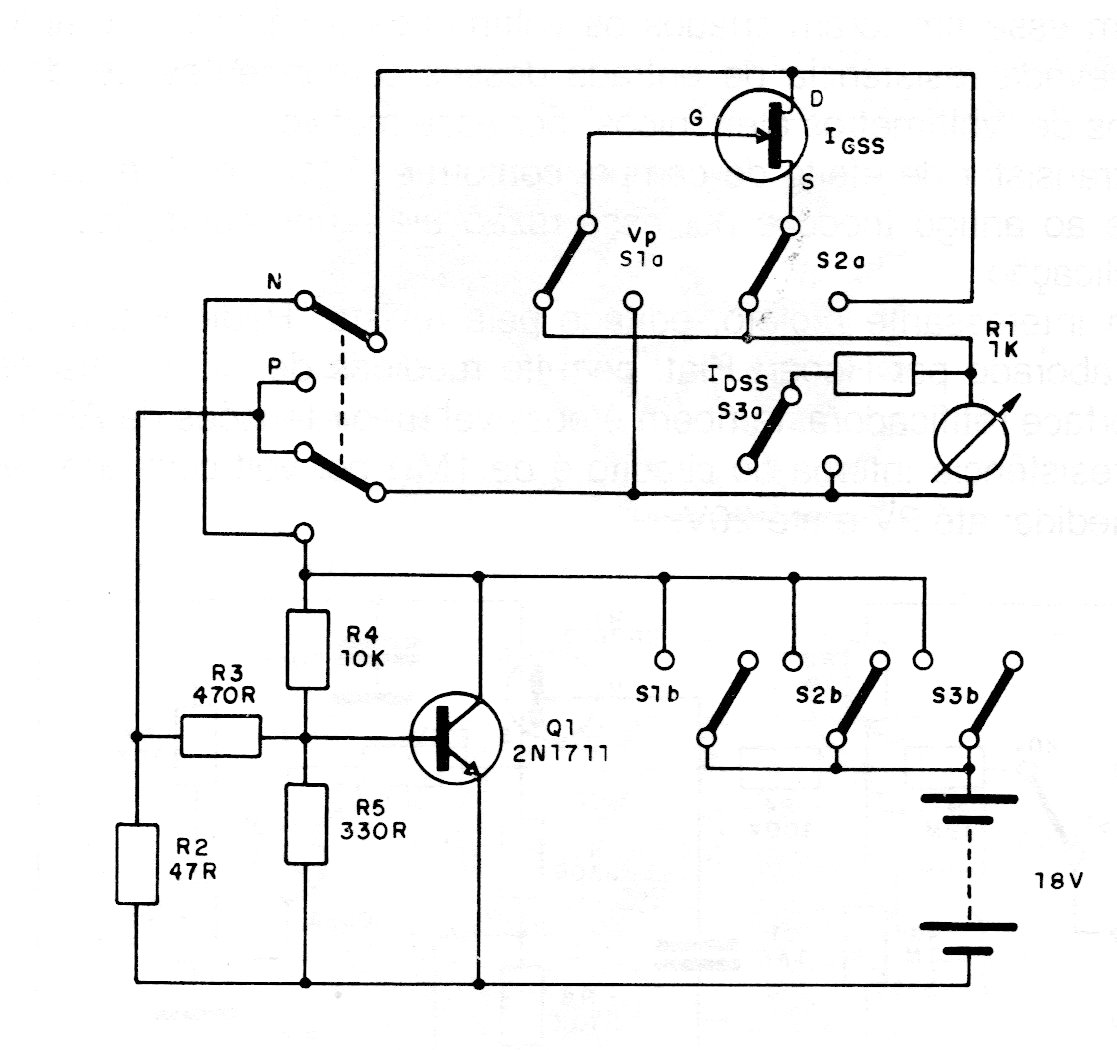

This circuit is intended for the testing of junction FETs, providing several reading options according to the selection made by the switches. The circuit is from an old European documentation and the bipolar transistor can be the BC548. Power is provided by two 9 V batteries and the indicator can be a multimeter on a low current scale.
