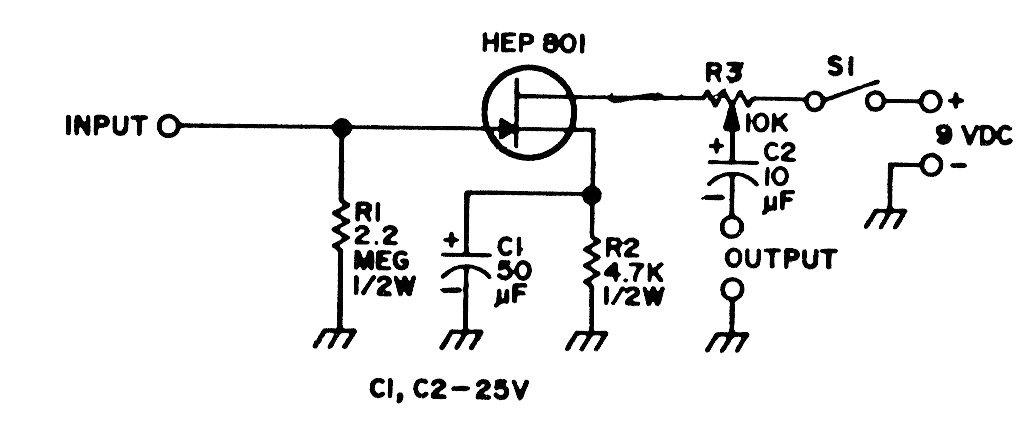

This circuit, from the 70's, can be assembled with a more modern FET like the BF245. The circuit is powered by a 9 V battery, as its consumption is very low.
| Clique na imagem para ampliar |
Microphone Preamplifier (CB19999E)
- Details
- Written by: Newton C. Braga
