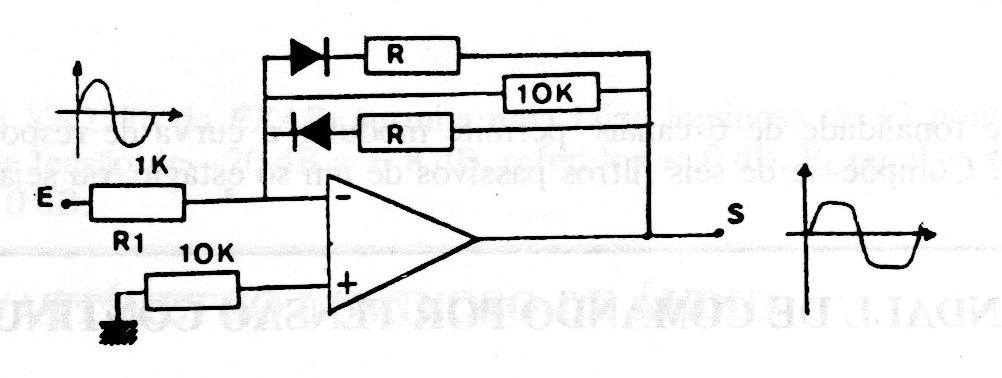

The presented circuit makes use of a common operational amplifier that must be powered by a symmetrical source. R resistors from 10k to 1M determine the gain and compression of the signal.
| Clique na imagem para ampliar |
Compressor Amplifier (CB19806E)
- Details
- Written by: Newton C. Braga
