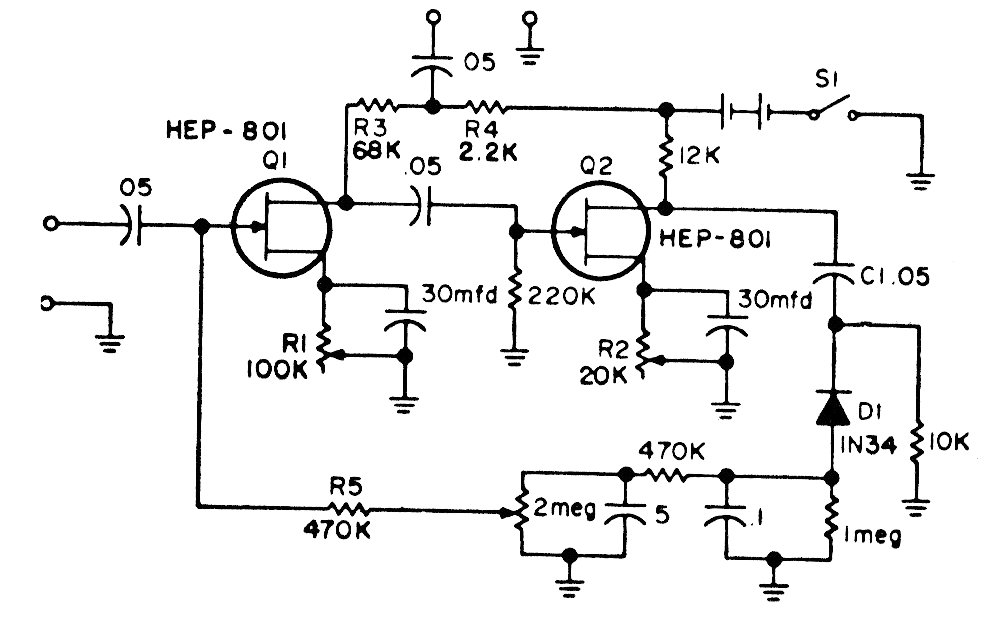

This circuit was found in a Motorola documentation from 1975. Modern equivalent transistors such as the BF245 can be used. The circuit is powered by 9 V voltage from cells or batteries.
| Clique na imagem para ampliar |
JFET Audio Compressor (CB19998E)
