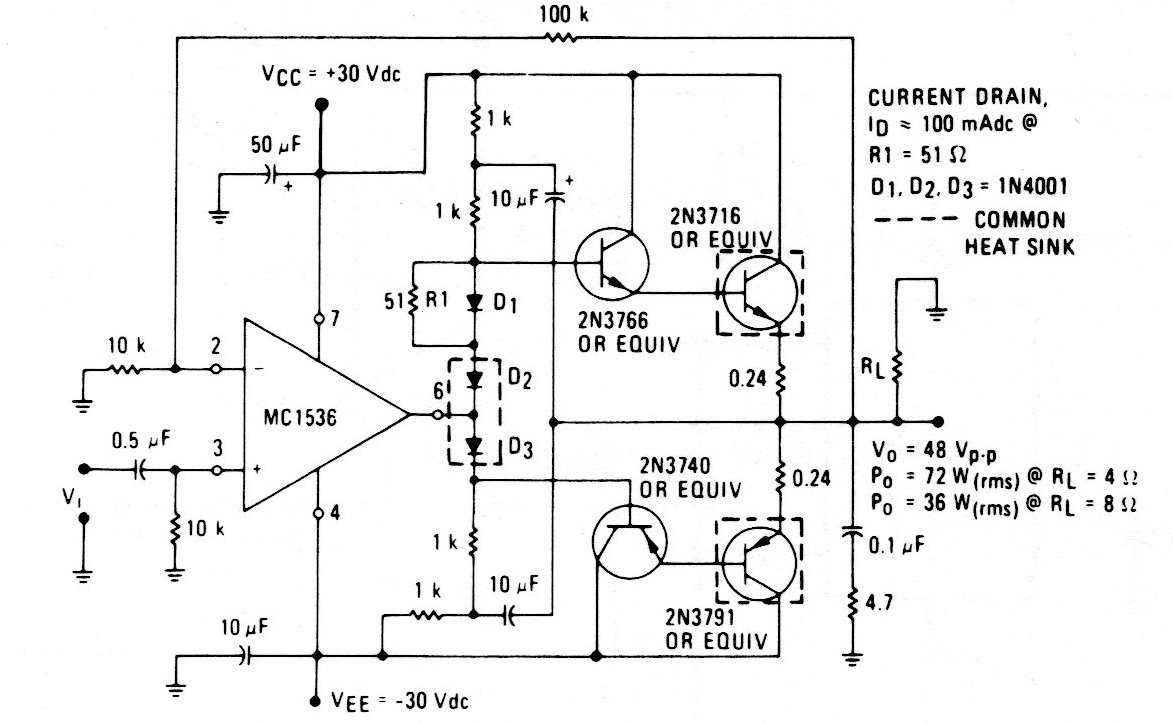

The circuit is from the manual of the integrated circuit used in the excitation of power transistors. The 30 V symmetrical supply should have a few amps of capacity.
| Clique na imagem para ampliar |
72 W Power Amplifier (CB19671E)
- Details
- Written by: Newton C. Braga
