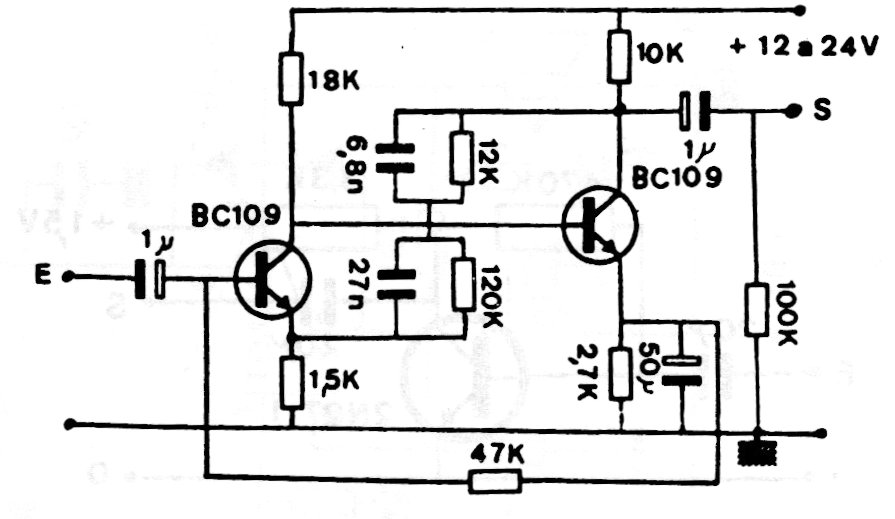

This RIAA equalizer preamp was found in a 1990s schematic. The transistors are an old version of the BC549 that can be used as a replacement. Signal input and output cable must be shielded.
| Clique na imagem para ampliar |
Turntable Preamplifier (CB19172E)
- Details
- Written by: Newton C. Braga
