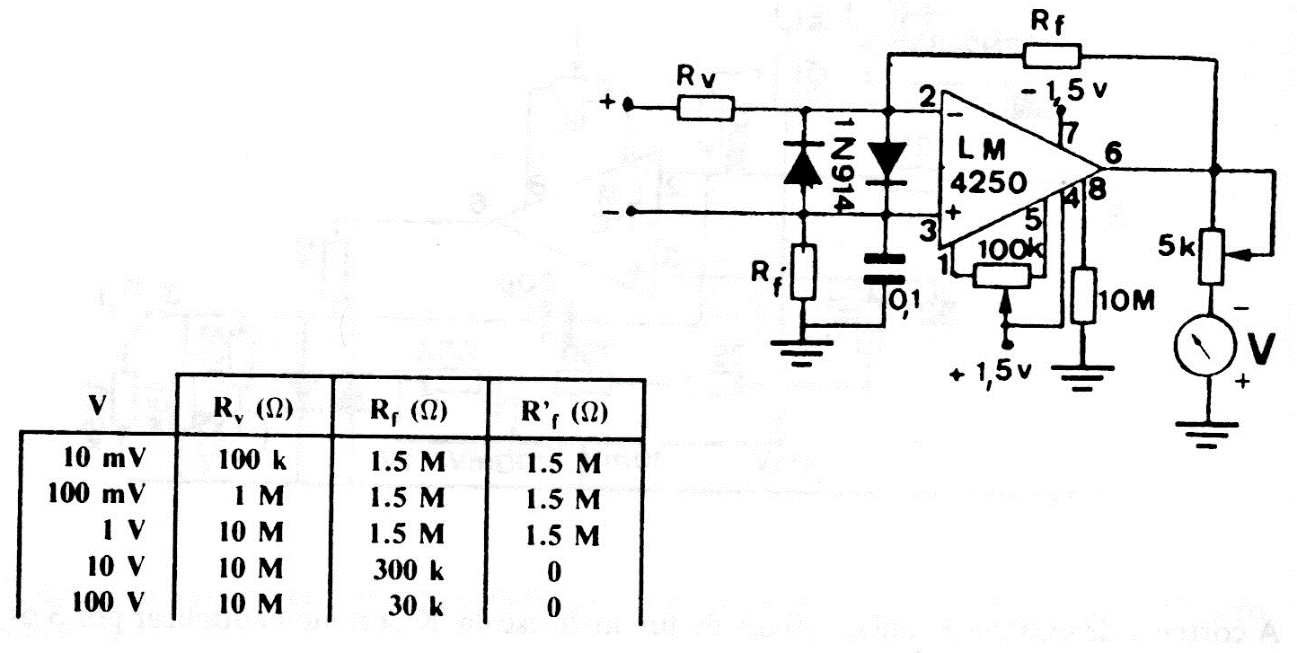

The operational amplifier used in this old application is not common today, but more modern equivalent types can be used. The circuit measures currents and voltages according to the table given next to the diagram.
| Clique na imagem para ampliar |
Voltmeter (CB19740E)
- Details
- Written by: Newton C. Braga
