Bridge Amplifier (CB19804E)

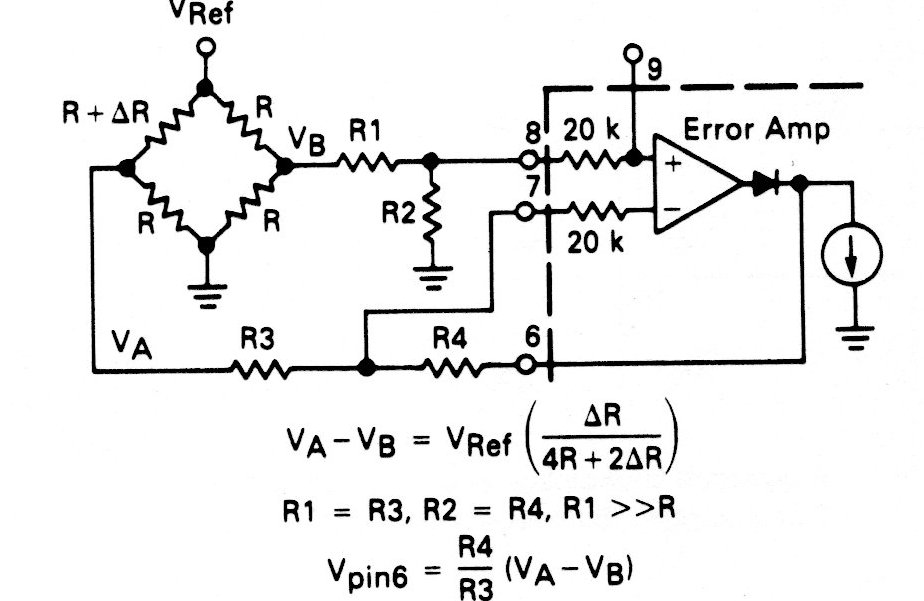

We found this circuit in documentation from the 1980s. The component values are calculated using the formulas next to the diagram.
