With this circuit, from an old operational datasheet, it is possible to measure the CMRR, rejection in common mode of an operational one. The power supply must be symmetrical.
| Clique na imagem para ampliar |

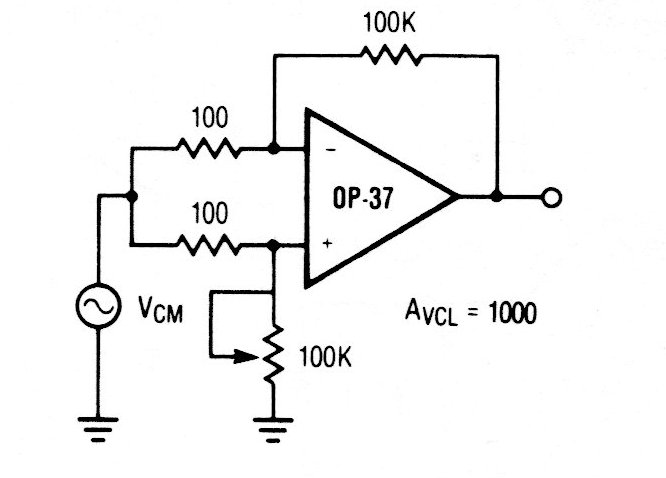

Test Circuit for CMRR (CB19725E)
