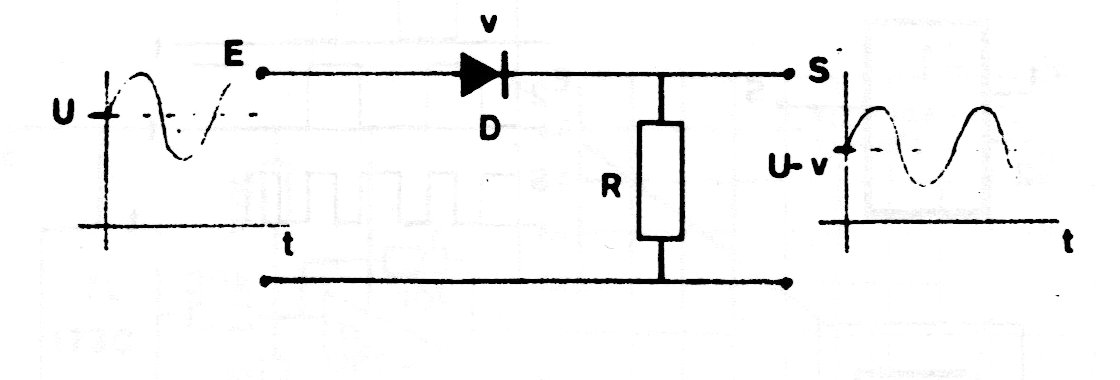

The figure shows how to obtain a pulsating continuous signal from an alternating signal using only one diode. The load resistor depends on the application.
| Clique na imagem para ampliar |
Simple Rectifier (CB19924E)
