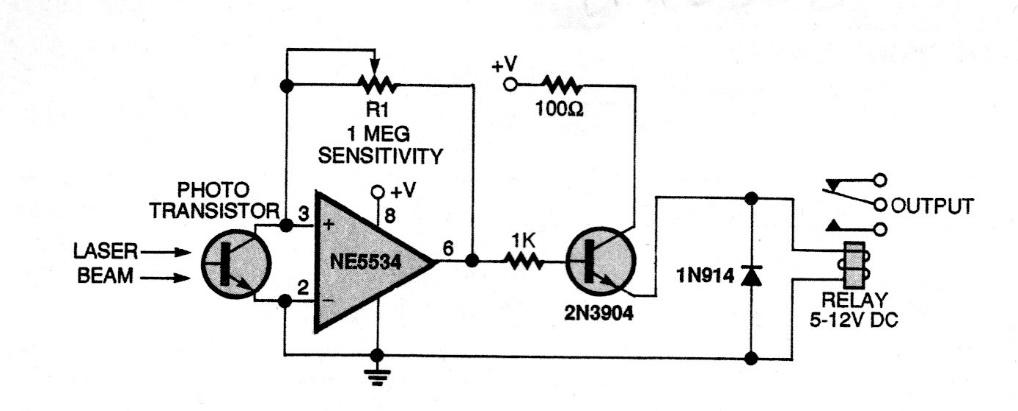

This circuit was indicated in an old American publication to serve as a Laser alarm system as a receiver. The laser can be a laser pointer or another and the potentiometer adjusts the trigger point. The power can be 6 or 12 V depending on the relay and the transistor is a BC548.
| Clique na imagem para ampliar |
