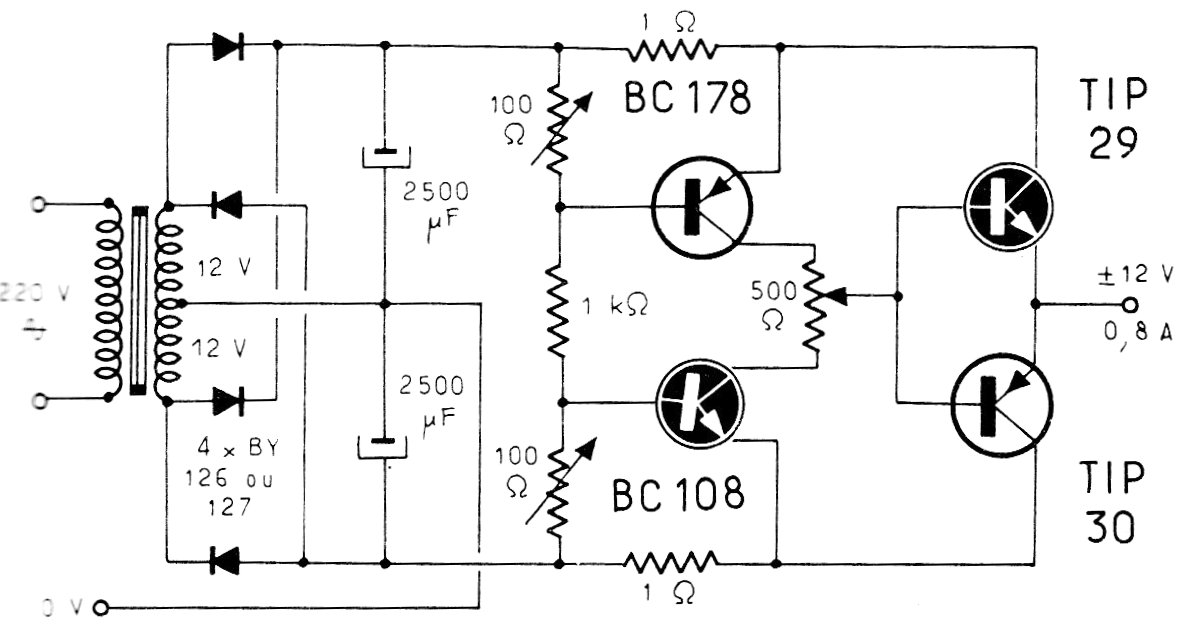

This circuit can provide both positive and negative voltage outputs from 2 to 12 V with current up to 800 mA. We found it in a European publication from the 1980s. The output transistors must be mounted on heatsinks and the diodes can be 1N4002 or 1N4004.
