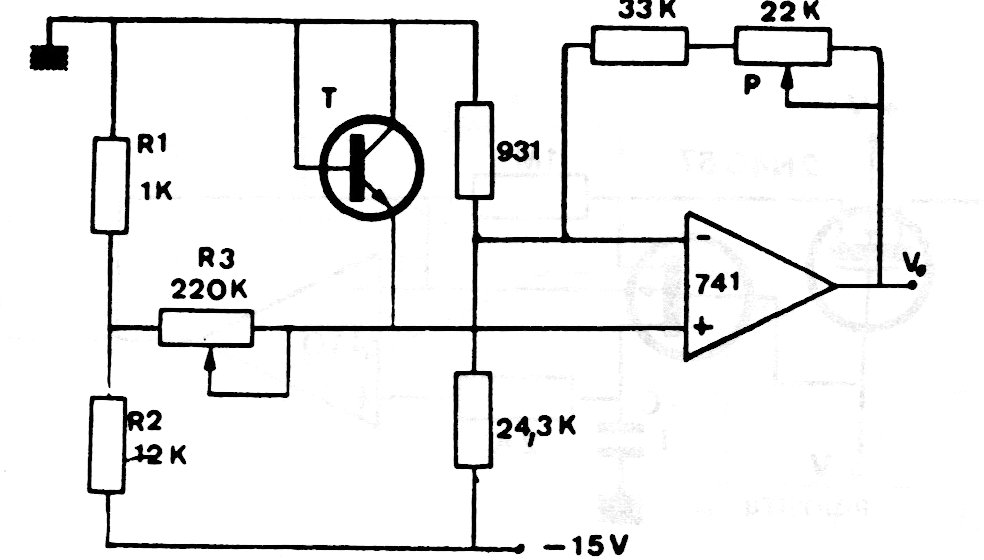

The sensor used in this transistor is a common silicon transistor and the operational admits equivalent. The circuit is from 80s documentation and uses a symmetrical source of 6 to 15 V. Modern operational amplifiers can operate with lower voltages.
| Clique na imagem para ampliar |
