This circuit is valid for other comparators of the same series. In this case, a lamp is excited, but an LED can be used in series with a resistor or other load. The transistor admits equivalent.
| Clique na imagem para ampliar |

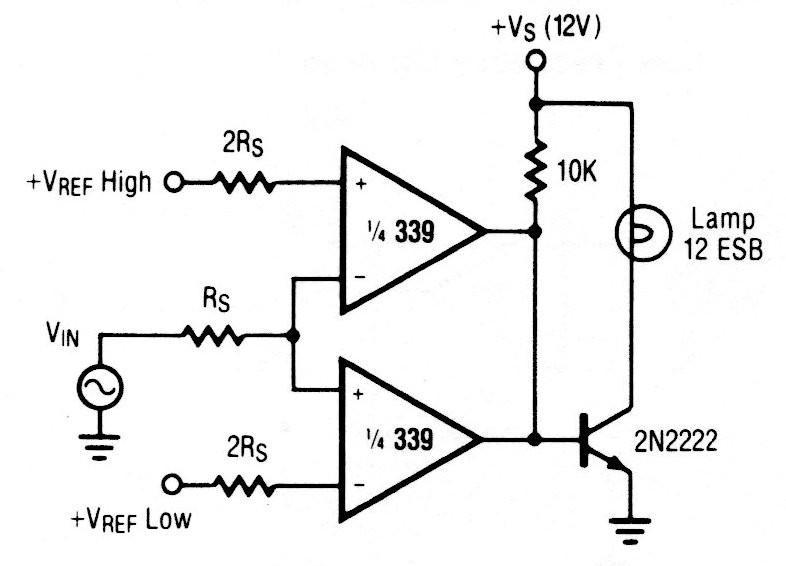

Limit Comparator LM339 (CB19793E)
